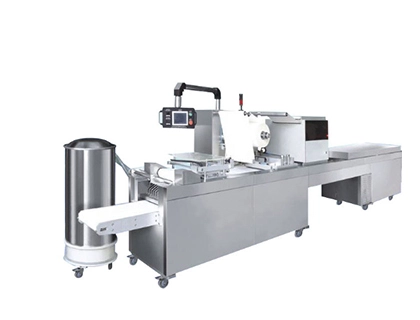

LINKPLUS's needle blister packing machine is a specialized equipment designed to package needles into airtight blister packs. The machine is commonly used in medical device production to protect the needles and maintain their sterility.
In the packaging process, the needles are typically placed into specially designed blister cavities, and the blister pack is sealed airtight to prevent contamination, damage, or tampering. LINKPLUS's high-speed needle blister packing machines are capable of producing large quantities of packaged needles in a short amount of time, often in excess of 50 units per minute. Overall, LINKPLUS's needle blister packing machines help maintain the safety and quality of medical devices and contribute to the rigorous quality control standards of the medical industry.
Package Range | 1-2ML | 3-5ML | 10ML | 20ML | 50ML |
Cavity/Mold | 22Cavity | 20Cavity | 16Cavity | 14Cavity | 5Cavity |
Mold/Minute | 12-15Mold | 12-15Mold | 12-15Mold | 12-15Mold | 12-15Mold |
Equipment Size | 7300*1200*1850MM | ||||
Power | 9KW | ||||
Weight | 2000KG | ||||
Air Pressure | ≥0.6Mpa |
A needle blister packing machine is used in the medical device industry to package needles into airtight blister packs. The packaging process involves placing needles into specially designed blister cavities, which are then sealed airtight to maintain the sterility of the needles and prevent contamination or tampering. Needle blister packing machines are particularly important for the production of hypodermic needles as they must maintain their sterility to protect against infection and cross-contamination. High-speed needle blister packing machines are capable of producing large quantities of packaged needles in a short amount of time, contributing to the efficient production of medical devices and the maintenance of rigorous quality control standards.
Sterility: Keeps needles sterile, which is crucial for medical equipment and lowers the risk of infection.
Protection: Ensures the quality and safety of medical devices by guarding against contamination, damage, or manipulation.
Effectiveness: The manufacture of medical devices is made more effective by high-speed production capabilities.
Compliance: Adheres to strict quality control standards demanded by laws governing the medical device sector.
